Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Babbitt
  • Model Number: P5
  • Usage: Outdoor
  • Tube Chip Color: Full Color
  • Display Function: Graphics
  • Pixels: 5mm
  • Screen Dimension: 960*320mm
  • LED Lamp: Red(Opto), Green(Silan), Blue(Silan)
  • Led Module resolution: 32*32
  • LED type: SMD3528
  • Cabinet size(mm): W 1040 * H 400 * T 300(with frame)
  • LED display: double side
  • Cabinet weight: 28KG/pc

Packaging & Delivery

Packaging Details 1-2cm foam + Paper cardboard each
Delivery Time about 7-15 working days

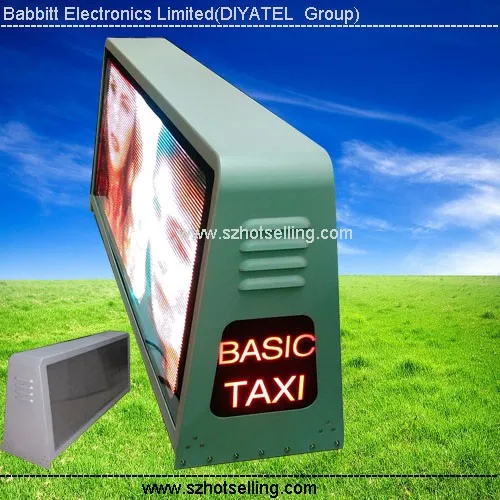

Hd Taxi Top Display/Roof Mounting Rotate Lcd Cab Car Taxi Advertising Screen100% Response Rate


Product Description


. including 3G/USB/WIFI control card, power supply,cabinet, modules, software.


  1. 1.       LED Lamp: Red(Opto), Green(Silan), Blue(Silan)

ptimal Viewing Angle (H/V): 140°/70°

  1. 2.       LED Module Specification

Pixel pitch:   5mm

Module resolution:  32*32

Module size: 160x160

Module quantity: 6*2 *2

Resolution: 40000dots

LED composition: 1R 1G 1B

LED type: SMD3528

Driving method: 1/8 scan constant current


3.LED Cabinet Specification

Cabinet size(mm): W 1040 × H 400 × T 300(with frame)

Cabinet resolution(dots) :  W 160 × H 64 = 10240dots

LED display: double side LED display

Cabinet material: Aluminum with stainess steel base

Cabinet color: Black(color can changed according to your request)

Cabinet weight: 28KG/pc


4.LED display specification

LED display size(m):  W 0.96  × H 0.32  =0.256sqm (without frame, for each side)

Exact size(mm) : W 1040  × H 400 × T 300 (with frame)

Real or virtual pixel:  Real

Brightness(cd) :  5500

Display color grade:  1024 × 1024 × 1024 = 1,073,741,824

Refresh rate (Hz) :  400 -1000

Protection grade:  IP65

Protection detail:  waterproof and dustproof, acrylic board outside protect

Work temperature(ºC):  -30 ~ +70

Humidity(RH) :  Up to 95

Life span:  100,000 hours

Out-of Control rate:  <0.0001

Display flatness:  Less than 1mm juncture


5.Control System

Control system brand: XIXUN

Control software: LED Editor

Memory of control card: 512M

Memory amplify: Support USB flash disk to expand capacity of memory

Control method: Asynchronous control

Support  video/picture format: AVI, WMV,  MOV, MPG, DAT, VOB, MP4,  FLV, MPEG, MPV, MPA, VCD, SWF, RM, RMJ, ASF, BMP, JPG, GIF, WMF, ICO,  SWF,ect


6.LED power specification

Input Voltage: DC9~36V (or AC 110V/220V)

Output Voltage: DC5V

Power consumption(Ave.) : 300W/sqm

Power consumption(Max.) : 550W/sqm

LED Display screen project Power consumption(Max.) : 550W


Packaging & Shipping


Packaging Details:1-2cm foam + Paper cardboard each
Delivery Detail:7-10 working days


Our Services


Company Information


Babbitt Electronics Limited (ISO9001-2000 certified, Authentication & Verification Checked) is a  subsidiary of Diyatel Electronic Co., Ltd. We are a professional manufacturer and exporter of various kinds of electronics items. Having factory facilities covering an area of 2000 square meters, and employing about 100 personnel, is specialized in the R&D, manufacture, marketing of LED-based products. Such as: LED Display , LED Digit Products, LED Light and other LED products... We have more than 10 years experiences in the LED field.

We are Located in Shenzhen City, nearby Hong Kong seaports. We strictly control the quality in accordance with ISO9001, and most of the products have the CE, FCC and ROHS certificate.
Hope our products in your favor

 Payment and Shipping


Many different payment terms are available for Babbitt.


Babbitt is willing to help you arrange the international transportation to your places and countries via different modes of transportation.

We welcome all buyers' customized OEM/ODM requirements and are looking forward to forming business relationships with companies worldwide. If you are interested in any of our products, please don't hesitate to contact us for further details.
